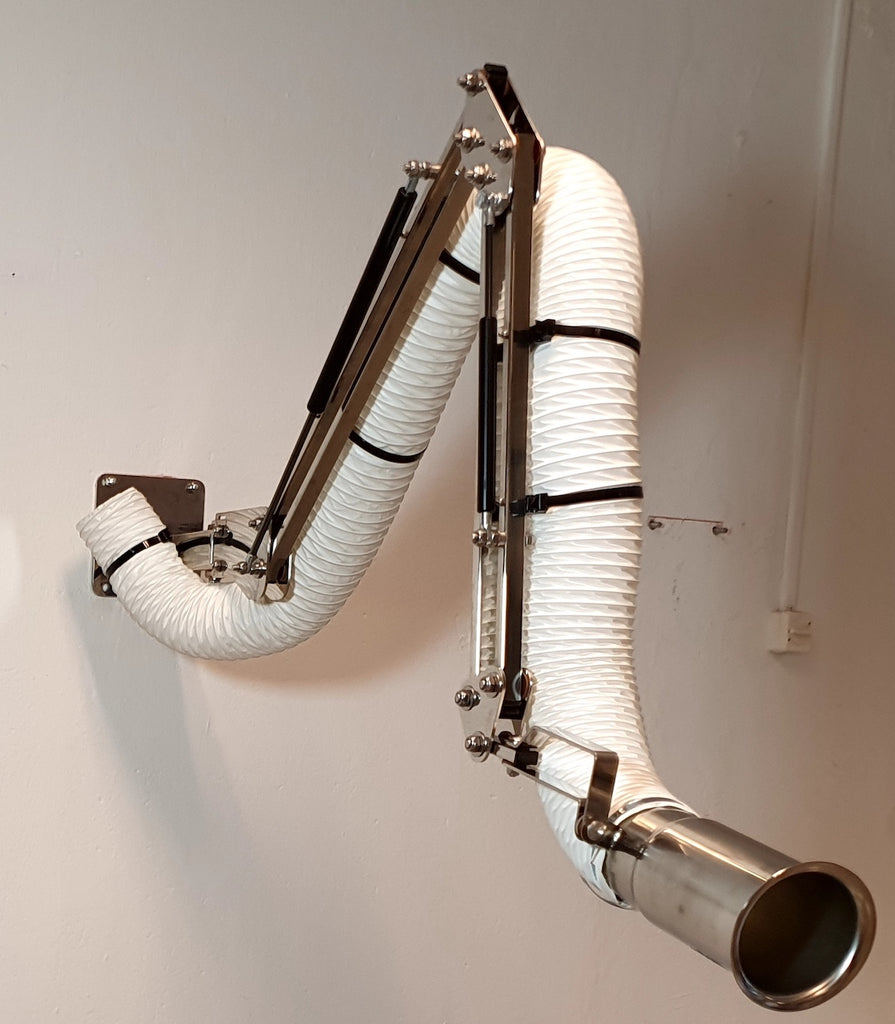

Super-M Extractor Arm ”Straight Hood” Ø110mm/3M (0.5+3m). All parts of Mirror polished, Acid proof Stainless Steel. Sealed tube ends.
Smoke, Dust and Gases. An extractor Arm extracts smoke, dust and gases directly at source, before contamination has spread in the premises and been inhaled. You will get better working environment, less wear and tear of the machines and lower cleaning costs.
Toughest Working Environments
Super-M is made for the toughest working environments in the Pharmaceutical, Food and Technical chemical industry.
Every detail is made of acid proof mirror polished stainless steel. Wall bracket, parallellogram arms, handle, hood, damper, bolts, nuts and washers.
Chemical-, Food- and Pharmaceutical Industry
Super-M is made for using when controlling, measuring, weighing, filling, blending, mixing, emptying, packaging etc.
The Hood is the secret behind the efficiency
The Ø110mm hoods are developed in cooperation with one of the biggest companies in the chemical industry. The straight hood is for dust. The 67° hood is for smoke and the 150° hood is for gases. The 150° hood develops a "tornado" effect, which enhances its capacity to extract gases.
The Ø160mm Hose and Hood Model
is intended for applications where 800-1200 m3/h through the extractor is needed.
Perfectly balanced. External hydraulically suspended parallellogram arms make the hood incredibly easy to move and 100% stable in all directions.
